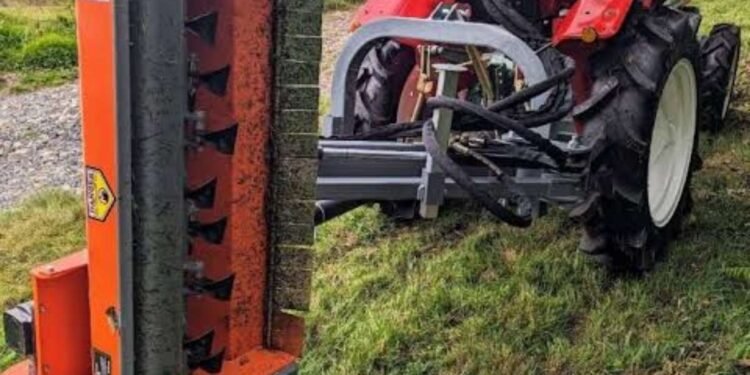

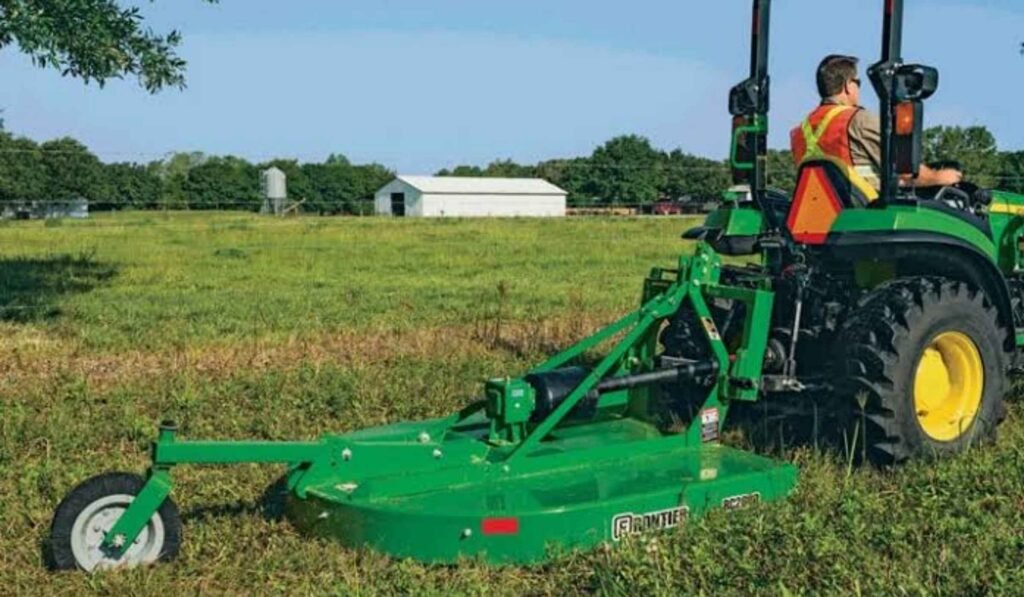

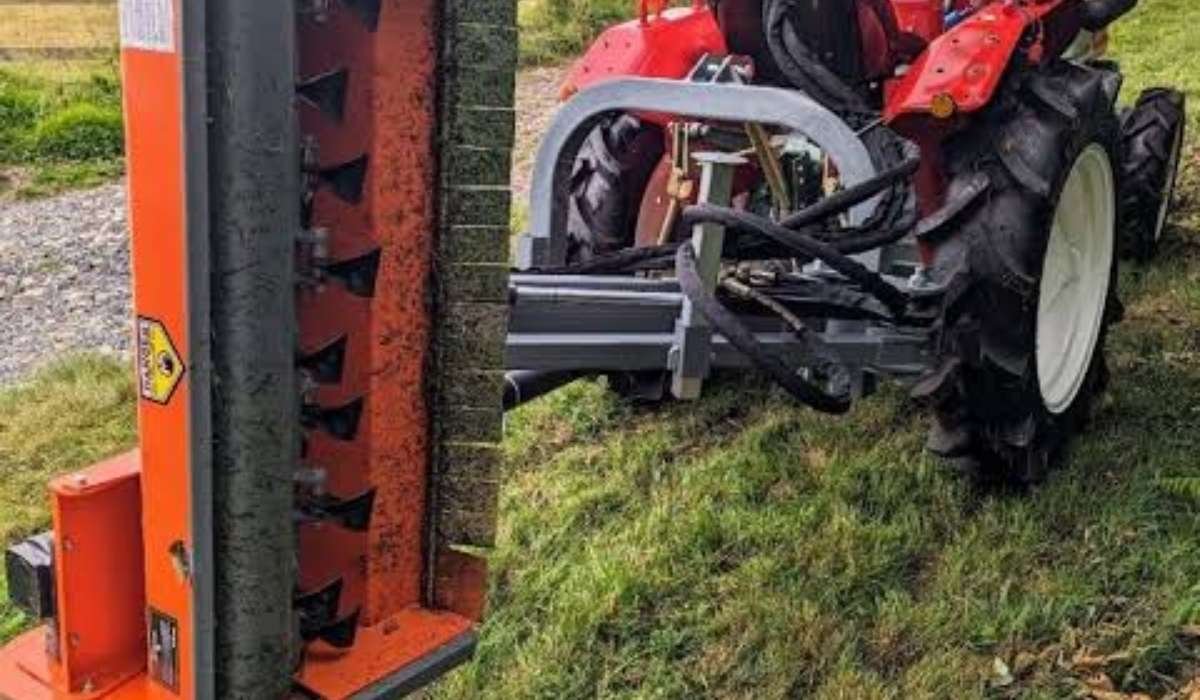

The Tractor PTO, or Power Take-Off, serves as the vital link between a tractor’s engine and its attached implements, acting effectively as a mobile power outlet. By routing engine power through the transmission to a rotating shaft, the Tractor PTO allows farmers to operate diverse machinery—from mowers and balers to tillers and pumps—without requiring separate engines for each attachment. Understanding how this system functions is essential for maximizing agricultural productivity. When operated correctly, the Tractor PTO transforms a standard tractor into a versatile workhorse, enabling seamless power transfer and significantly enhancing efficiency across various farming tasks and seasonal operations.
Quick Bio: Tractor PTO Essentials
| Feature | Details |
| Definition | A mechanical device transferring tractor engine power to implements. |
| Core Function | Drives attachments like tillers, mowers, and pumps via a rotating shaft. |
| Key Advantage | Eliminates the need for individual engines on towed implements. |
| Primary Safety | Requires fully functional guards and strict operator training. |
Understanding the Fundamental Working Principle of a Tractor PTO

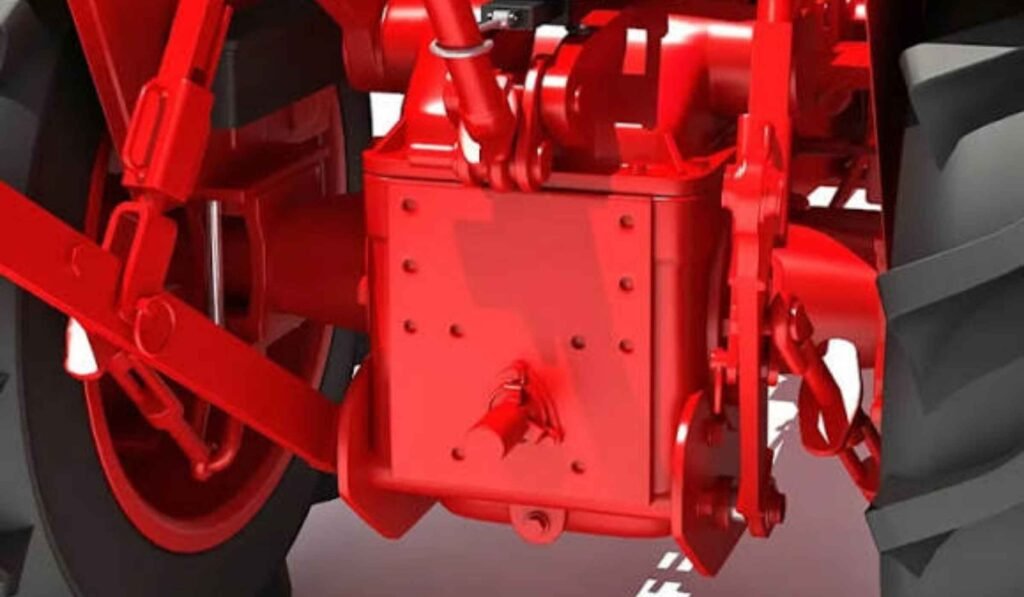

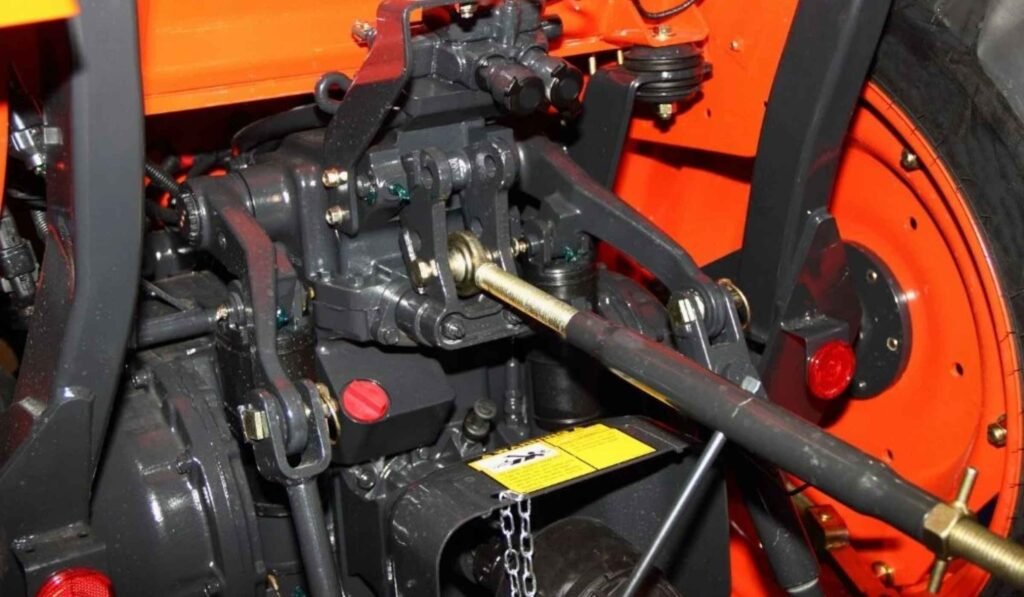

The working process of a Tractor PTO is relatively straightforward but highly effective for agricultural applications. Initially, the tractor’s engine generates mechanical power. This power is then routed through the tractor’s transmission system to the rear-mounted Tractor PTO shaft. The shaft rotates at a standardized, fixed speed, delivering consistent torque to the attached machine. Once connected, the implement utilizes this rotational energy to perform specific tasks, such as cutting, mixing, or pumping water. This elegant design ensures that implements remain lightweight and cost-effective, relying entirely on the tractor’s robust engine to handle the heavy lifting required during daily farm operations.
Exploring Transmission PTO Systems
Transmission PTO systems are among the most basic configurations found in agricultural machinery. In this setup, the Tractor PTO speed is directly linked to the tractor’s transmission gear. Consequently, when an operator presses the clutch to stop the tractor’s movement, the PTO rotation also stops. While this design is simple and reliable for many tasks, it can be limiting in situations where you need to stop the tractor but keep the implement running, such as clearing a clogged baler. Despite this limitation, transmission-style Tractor PTO units remain common due to their mechanical simplicity and lower overall maintenance requirements for farmers.
The Advantages of Live PTO Systems
Live PTO systems offer a significant upgrade for farmers who require more control during fieldwork. These systems typically utilize a two-stage clutch, allowing the operator to stop the tractor’s forward motion while keeping the Tractor PTO fully engaged and spinning. This functionality is a major relief during tasks like baling or rotavating, where frequent stops and starts are necessary to manage turns or clear material. By separating the tractor’s movement from the implement’s power, a Live Tractor PTO enhances productivity and reduces operator fatigue, making it a preferred choice for modern, fast-paced agricultural environments and demanding field conditions.
Precision Control with Independent PTO (IPTO)
Independent PTO (IPTO) systems represent the pinnacle of control and convenience in modern tractors. An IPTO operates completely independently of the main tractor clutch, typically engaged by a separate lever or electronic switch. This means the operator can start or stop the Tractor PTO at any time without affecting the movement of the tractor itself. This level of precision is excellent for spraying, harvesting, and other operations where multiple short, controlled bursts of power are needed. With an IPTO, farmers enjoy maximum flexibility, safety, and efficiency, ensuring that the implement is only running exactly when it is needed for the task.
Boosting Efficiency with Economy PTO (Eco PTO)
The Economy PTO (Eco PTO) is designed to optimize fuel consumption and reduce noise during light-duty work. This feature allows the Tractor PTO to reach its standard output speed—usually 540 rpm—at a lower engine rpm than normal. Consequently, farmers can save significantly on fuel costs while operating equipment like light spray pumps, small threshers, or other low-load implements. While it is not intended for high-load applications that require full-rated horsepower, the Eco Tractor PTO provides a smoother, quieter operation for routine chores, making it an incredibly valuable asset for daily, less intensive farm maintenance and management tasks.
Ensuring Stability with Continuous PTO
Continuous PTO systems are engineered to deliver uninterrupted power, making them ideal for long-duration agricultural operations. Unlike systems that may be affected by clutching, a continuous Tractor PTO provides a steady, reliable flow of power that is critical when running equipment like irrigation pumps or post-harvest machinery. In these scenarios, stability is far more important than frequent stops or starts. By providing constant rotation, this system minimizes mechanical strain on both the tractor and the implement. Farmers rely on continuous Tractor PTO setups to ensure that essential, time-sensitive operations proceed without technical interruptions, maintaining overall farm productivity during critical peak seasons.
Clearing Jams with Reverse PTO Capability
Reverse PTO is a highly useful, albeit niche, feature found on some advanced tractors. It allows the Tractor PTO shaft to rotate in the opposite direction, which is incredibly helpful when an implement becomes jammed or stuck in the field. Whether dealing with a clogged post-hole digger or blocked rotary equipment, the ability to reverse rotation helps clear obstructions quickly and safely. This feature saves operators from having to manually clear blockages, which can be dangerous work. By simply engaging the reverse Tractor PTO, farmers can disengage materials efficiently, getting back to work with minimal downtime and reduced risk of injury.
Multi-Speed PTO Flexibility for Various Implements
Modern agricultural tasks often require different rotational speeds to operate equipment effectively. Multi-Speed PTO systems address this by supporting more than one speed, most commonly offering both 540 rpm and 1000 rpm settings. This dual-speed arrangement provides the necessary flexibility to match a wide range of implements without compromising performance or causing damage to the equipment. By simply switching the Tractor PTO speed to match the implement’s requirements, farmers can ensure that every machine operates at its peak efficiency. This versatility makes the Multi-Speed Tractor PTO an essential feature for farmers who manage a diverse fleet of specialized agricultural machinery.
Non-Negotiable Safety Protocols for PTO Operation
Safety is paramount when working with a Tractor PTO, as the rotating shaft poses a severe risk of entanglement if handled incorrectly. Accidents involving these shafts can be fatal or cause life-altering injuries, making strict adherence to safety protocols non-negotiable. Always ensure that the master guard on the tractor and the shaft guard on the implement are securely in place and functional. Never operate the Tractor PTO without these protective shields. Additionally, operators should never wear loose clothing or jewelry, and long hair must be tied back. A moment of carelessness can lead to devastating consequences, so vigilance remains the most important safety tool.
The Vital Role of PTO Shaft Guards
PTO shaft guards are the first line of defense against entanglement accidents. A proper guard should cover the entire length of the rotating shaft, including the universal joints and clutches. It is essential that the guard is designed to remain stationary while the shaft rotates freely inside. If a guard is damaged, cracked, or missing, it must be replaced immediately. Many farmers make the mistake of leaving guards off for “easier” access, but this practice is extremely dangerous. Always verify that your Tractor PTO guards are correctly installed, overlap appropriately, and rotate freely before starting any agricultural operation or field task.
Performing Routine Pre-Operational PTO Inspections
Before starting your tractor, conduct a thorough visual inspection of the Tractor PTO driveline. Look for signs of wear, loose components, or damaged guards that could pose a safety hazard. Check the universal joints, couplings, and the shaft itself for any cracks or unusual play. Give the connection a firm shake to ensure everything is tight and properly secured. Taking these few moments to inspect the Tractor PTO system is like a pre-flight check for a pilot; it helps detect potential failures before they occur in the field, significantly increasing your overall safety and reducing expensive downtime.
Importance of Regular PTO Lubrication
Lubrication is the cornerstone of effective Tractor PTO maintenance. Without proper greasing, moving components like universal joints, yokes, and telescoping members suffer from increased friction, heat, and accelerated wear. Follow the manufacturer’s recommended lubrication schedule, which often requires greasing every eight hours of operation. Use high-quality, extreme-pressure grease to ensure long-lasting protection. Remember that while you cannot “over-grease” a driveline, failing to wipe away excess grease can attract dirt and debris, which may cause further contamination. Consistent lubrication keeps the Tractor PTO operating smoothly, extends component life, and ensures that power transfer remains highly efficient during heavy-duty work.
Managing PTO Shaft Length for Efficiency
Ensuring the Tractor PTO shaft is the correct length is crucial for both safety and efficiency. If a shaft is too long, it can bottom out during turns, causing severe damage to the tractor or the implement. Conversely, a shaft that is too short may disengage during operation, creating a dangerous situation. The telescopic section of the guard should be slightly shorter than the halves of the drive shaft, allowing for proper overlap and safe movement. Always check the shaft length when attaching a new implement to ensure the Tractor PTO can operate through the full range of motion without binding or stretching.
Identifying Common Causes of PTO Failure
Most Tractor PTO failures stem from predictable issues, primarily overloading, misalignment, and inadequate lubrication. Applying more power than the shaft is designed to handle—or operating at extreme angles—can result in structural damage or broken joints. Misalignment between the tractor output and the implement input creates excessive stress, leading to premature wear and potential failure. Furthermore, neglecting routine maintenance, such as ignoring strange noises or vibrations, often allows minor issues to escalate into expensive repairs. By matching your equipment’s power requirements to your Tractor PTO specifications and keeping the system well-maintained, you can avoid these common causes of mechanical failure.
Addressing PTO Spline and Coupling Wear
The splines and couplings are responsible for securely connecting the shaft to both the tractor and the implement. Continuous use under heavy loads can gradually wear down these connection points, leading to slippage or poor power transfer. If you notice the Tractor PTO is not rotating properly even when engaged, inspect the splines for visible damage or excessive wear. Replacing worn couplings early is a proactive step that restores normal operation and prevents further damage to more expensive internal components. Keeping these connection points clean and properly lubricated is essential for maintaining a secure and efficient connection during demanding farming operations.
Dealing with Contamination in Agricultural Environments
Agricultural environments are notoriously harsh, exposing Tractor PTO components to dirt, dust, mud, and crop residue every single day. These contaminants act as an abrasive, accelerating wear if they penetrate into the moving joints or sliding sections. To combat this, make it a habit to clean the shaft thoroughly after completing your field work. Keeping the Tractor PTO clean prevents the buildup of corrosive material and ensures that your lubrication efforts remain effective. A clean, well-maintained system is significantly less prone to contamination-related issues, helping you protect your machinery investment throughout the entire, challenging farming season.
Emergency Shutdown Procedures and Familiarity
Every operator must be intimately familiar with the emergency shutdown procedures for their specific tractor. In the event of an entanglement or equipment malfunction, knowing exactly where the Tractor PTO disengagement lever or switch is located can save a life. Do not rely solely on memory; practice the shutdown steps until they become automatic. When working near the rotating shaft, always ensure the engine is turned off and the key is removed from the ignition. Taking these precautions removes the risk of accidental engagement, providing a safer environment for anyone performing maintenance or clearing obstructions from the Tractor PTO area.
Adhering to ISO 500 Safety Standards
The ISO 500 series of standards plays a pivotal role in advancing Tractor PTO safety globally. These international standards, adopted by agricultural organizations, provide clear, scientific guidelines for shaft design, protective shield dimensions, and safe operating speeds. By adhering to these protocols, manufacturers ensure that equipment is built to minimize the risk of serious injuries. Farmers should prioritize purchasing and using equipment that is compliant with these rigorous standards. Understanding and following these established procedures not only enhances the safety of your daily work environment but also aligns your operations with the best practices in modern agriculture.
Training Operators for Safe PTO Engagement
Comprehensive operator training is the most effective way to reduce human error, which remains a significant factor in many Tractor PTO accidents. All individuals who operate the tractor must receive thorough instruction on how to safely engage, disengage, and maintain the PTO system. This training should cover basic operation, the limitations of the equipment, and the specific safety protocols for each implement used. Well-trained operators are more likely to perform necessary inspections, recognize early signs of wear, and prioritize safety above speed. Investing in training is the best investment you can make in your farm’s productivity and, more importantly, your team’s safety.
Final Thoughts: Harnessing PTO Power Responsibly
The Tractor PTO remains the unsung workhorse of modern agriculture, transforming tractors into incredibly versatile machines. While its power is undeniable, it demands respect and responsible management to remain a safe and efficient asset. By understanding the different system types, adhering to strict maintenance schedules, prioritizing safety guards, and investing in operator training, farmers can maximize the lifespan and performance of their equipment. Treat your Tractor PTO with the care it requires, and it will reliably serve your farm, boosting efficiency and productivity season after season.
- What is a tractor PTO?
- A PTO, or Power Take-Off, is a mechanical device that transfers power from the tractor’s engine to an attached implement through a rotating shaft.
- Why is the PTO shaft guard so important?
- The guard is essential because it prevents clothing, hair, or limbs from becoming entangled in the rotating shaft, which can cause severe or fatal injuries.
- How often should a PTO shaft be lubricated?
- As a general rule, you should grease the PTO driveline components every 8 hours of operation, or as specified by the equipment manufacturer’s manual.
- What is the difference between Transmission PTO and Independent PTO?
- Transmission PTO stops when the tractor’s clutch is pressed, while Independent PTO (IPTO) allows the implement to keep running regardless of whether the tractor is moving.
- What are the common causes of PTO failure?
- The most frequent causes are overloading the system, operating at improper angles, lack of regular lubrication, and neglect of routine maintenance checks.
